DeeMaxx 3.5K Hydraulic Disc Brake Kit, Dacromet Coating, 5.45 Bolt Pattern

DeeMaxx 3.5K Hydraulic Disc Brake Kit, Dacromet Coating, 5.45 Bolt Pattern, 1/DBI-3.5K-MAXX-KIT

Description:

• 1 Wheel End Disc Brake Conversion Kit for 3,500 lbs axle with MAXX Coating
• Each 1/DBI kit includes Rotor or Rotor/Hub, Disc Brake Caliper, Caliper Mounting Bracket, Inner Bearing, Outer Bearing, Dust Cap, Grease Seal, Mounting Bracket Hardware, Lug nuts, and Rubber Plug

Specification:

• Axle Capacity- 3,500 Lbs.

• Wheel Pattern- 5 on 4-1/2″

• Wheel Stud Size- 1/2″

• Rotor Size- 10-3/16″

• Caliper Piston Diameter- 2-1/4″

• Brake Caliper Flange- 4 Bolt

• Main Construction- Cast construction

• Finish- MAXX Dacromet coating

• Manufacturer- DeeMaxx

• DeeMaxx Part Number: DBI-3.5K-MAXX

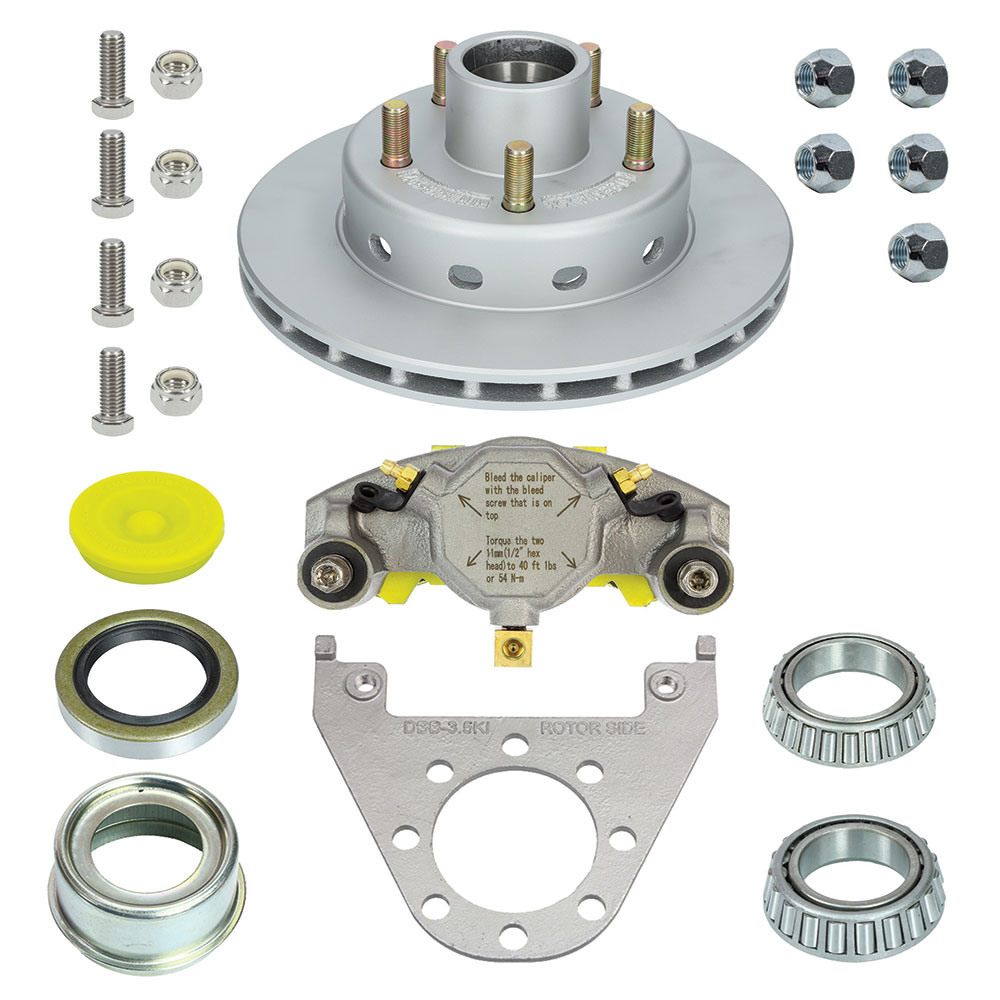

What’s Included:

• (1) RTR/HUB-102-MAXX
• (1) CALP-3-6K-MAXX
• (1) DBB-3.5KI-MAXX
• (1) TRP-BRG-L-44649
• (1) TRP-BRG-L-68149
• (1) TRP-DC-200L
• (1) TRP-GS-1719DL
• (4) DBB-3.5KI-SS BOLT
• (4) DBB-3.5KI-SS NUT
• (5) LNOZ-1/2
• (1) DC-RPY

Weight: 32 lbs

Note: Currently Not Available For Local Pickup
