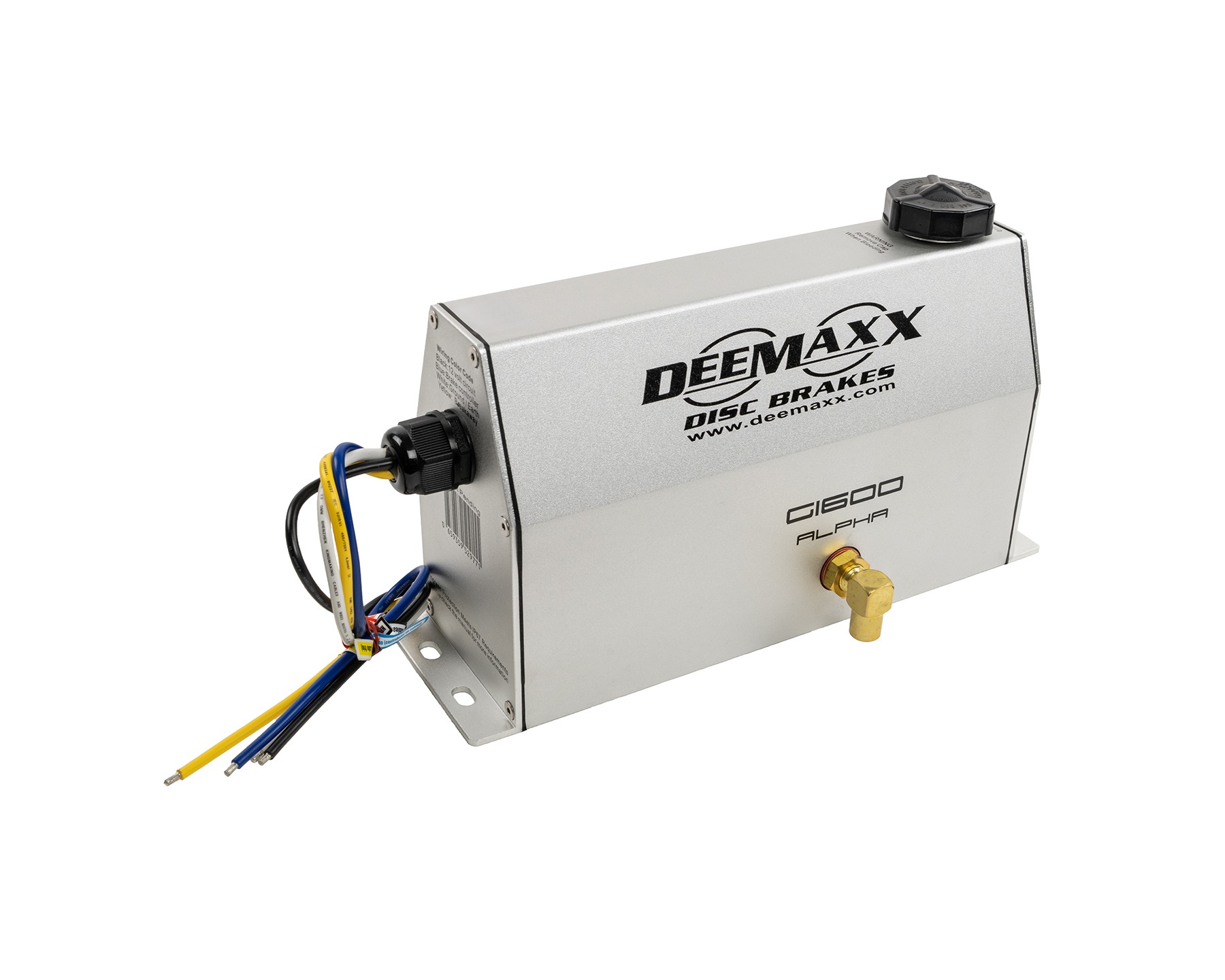

DeeMaxx EOH ALPHA 1600 psi Disc Brake Actuator

DeeMaxx EOH ALPHA 1600 psi Disc Brake Actuator w/ Built in Compatibility Adapter Fluid Capacity of 15.7 oz.

Electric/Hydraulic brake actuator provides 1600 psi of pressure for 1-3 axles equipped with disc brakes. Sealed housing provides a weather tight seal. Large reservoir capacity reduces the number of fill-ups required which reduces the bleed time as well as the risk of running the reservoir dry during brake bleeding. Aluminum enclosure provides anti-corrosive protection and prevents the elements from affecting reliability while the finned housing design dissipates heat efficiently. Proportional pressure output to the brakes corresponds to voltage output of the brake controller for smooth, reliable braking.

Specifications:

• Provides 1600 PSI of pressure
• For single, tandem, and triple axle trailers with drum brakes
• Overall Dimensions: 10″ L x 3-5/8″ W x 6″ H
• Mounting Hole Dimensions (Center Hole To Center Hole)- 10-7/8″ Long X 1-5/8 Wide
• Hydraulic Port Size: 3/16″ Inverted Flare
• Uses DOT 3 or 4 brake fluid, holds 15.7 oz
• Meets or exceeds all DOT regulations and federal braking requirements
• Wiring Configuration
  • Black: 12 V DC Power
  • Blue: Brake Controller
  • Yellow: Breakaway Unit
  • White: Ground
• DeeMaxx- EOHA1600
