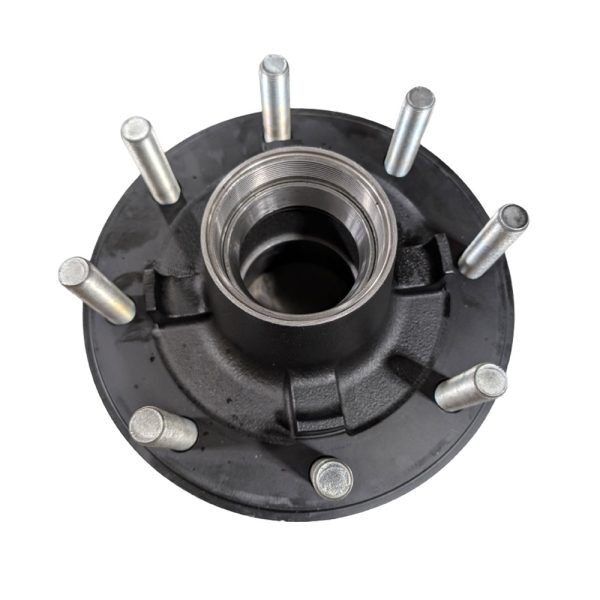

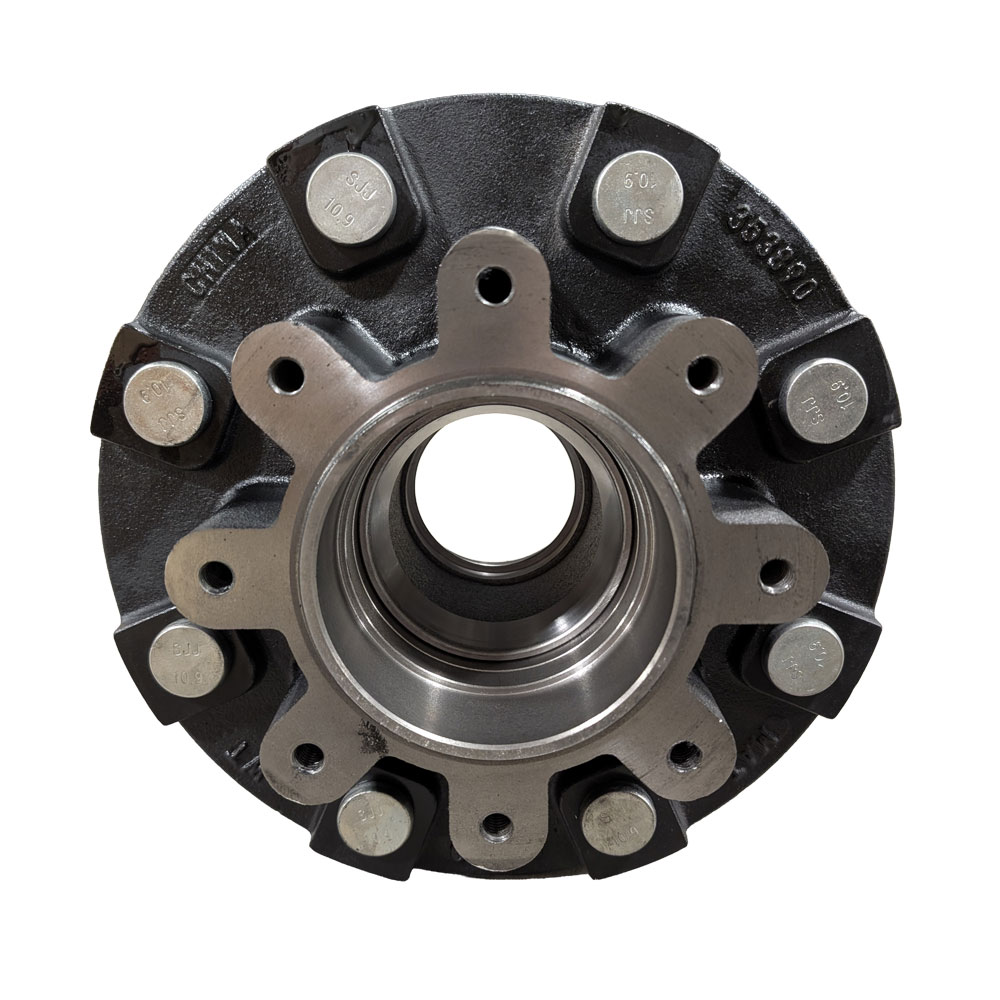

Dexter Replacement Trailer Idler Hub,15000 lb Heavy Duty Axle, 8 on 275mm

Dexter Replacement Trailer Idler Hub,15000 lb Heavy Duty Axle, 8 on 275mm, 008-401-05

This Dexter replacement trailer idler hub is designed to mount on 15,000 lb heavy duty trailer axles. The bolt pattern is 8 on 275mm. Comes with the races and studs properly pressed in and ready for assembly. Oil bath hubs offer an easy lubricating system without disassembling your hub. Hi temp axle grease can be used on this application as well.
*Inner bearing, outer bearing, oil seal, oil cap, and lug nuts are sold separately.*
*Please verify your bearing numbers before placing your order.*

Compatible With Dexter 8-401-5, 8-401-05, 08-401-05
Compatible with Dexter axles.

Specifications: Increase the life of your trailer, by using Miller Auto Technology’s top of the line, durable, quality replacement parts.

• Axle Capacity- 15,000 lbs.
• Hub Capacity- 7,500 lbs.
• Bolt Pattern- 8 On 275mm
• Hub Pilot- 4-3/4″
• Wheel Size- 16″, 17.5″
• Bearings (Sold Separately)
  • Inner Bearing- 3984 (ID- 2.625″)
  • Outer Bearing- 28682 (ID- 2.25″)
• Races (Included)
  • Inner Race- 3920
  • Outer Race- 28622
• Oil Seal (Sold Separately)
  • 10-56 (ID- 3.125″ & OD- 4.5″)
• Oil Cap (Sold Separately)
  • 21-36 Oil Cap Kit
• 22 MM Wheel Studs
• Mat 99-86515K

Commonly used on Flatbed Trailers, Equipment Trailers, & Dual Tandem Trailers.
