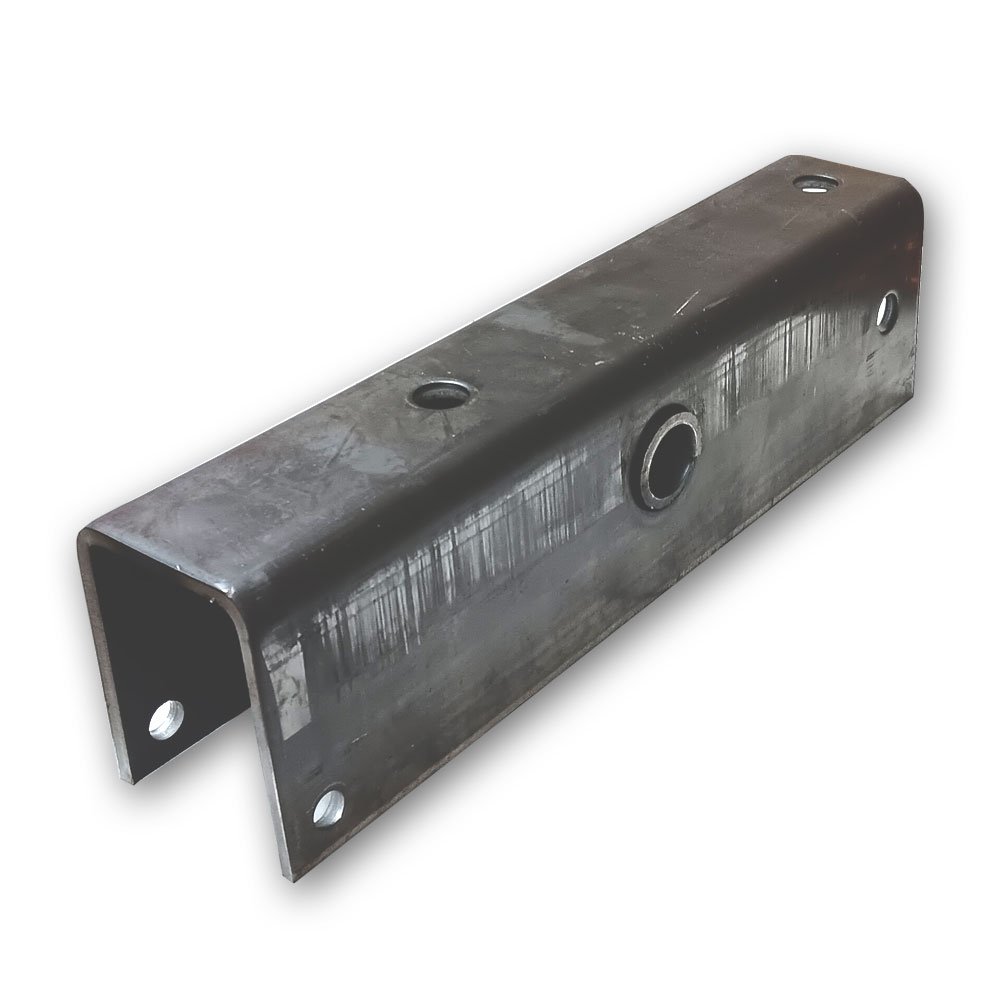

Equalizer, Rectangular, 13″, For 2″ Slipper Spring

Equalizer, Rectangular, 13″, For 2″ Slipper Spring

This 13″ long equalizer will ensure your load is distributed property
Fits 2″ wide slipper leaf springs.
Fits 9/16″ diameter spring eyes.
Rated for 3,500 lb – works on axles rated up to 8,000 lb.
Works on both the driver’s side and passenger’s side.
Overall Length: 13″ Long – See more dimensions below
Manufacturer’s Part Number: EQ-1344
Other part numbers: 13-44, 13-44-1, TREQ1344
Construction: Structural Steel

This equalizer is designed to distribute the weight evenly over tandem or triple axle trailers.
Equalizer will take the shock out your load and result in a smoother ride for your trailer.
Made of .22″ high-quality hot rolled structural steel.

Chart Dimensions:
(A) 13″ equalizer length
(B) 3.50″ equalizer height
(C) 5.94″ front bolt to center
(D) 5.50″ center to back bolt
(E) 7/8″ center bolt
(F) 7/16″ spring retainer bolt
(G) 9/16″ spring eye bolt
The specifications and dimension are for reference only.

Installation Instructions:
Slide equalizer in center hanger and insert the 7/8″ main equalizer bolt (sold separately)
Slip arched end of front spring into the equalizer and install the retainer bolt (sold separately)
Attach rear spring with shackle bolt (sold separately) through the eye of spring.
