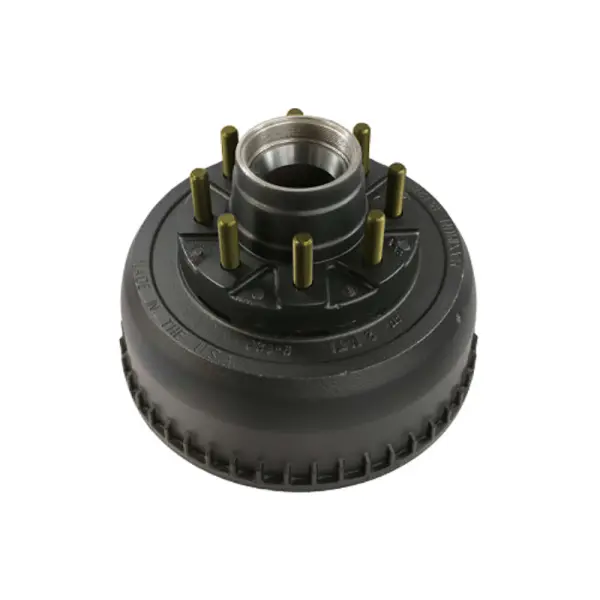

MAT Lippert Replacement Hub And Drum, 9000-10000 lb General Duty Axle 8 on 6-1/2″, After July 2009
SHIPPING: Calculated In Cart ( Only If Applicable )
MAT Lippert Replacement Hub And Drum, 9000-10000 lb General Duty Axle 8 on 6-1/2″, After July 2009
This MAT trailer hub and drum is designed to mount on 9,000-10,000 lb general duty trailer axles. The drum drums gives a gripping surface for the brake shoes when you apply the brakes. They are compatible with both electric or hydraulic 3-3/8″ brake assemblies. Durable steel construction offers strong stopping power. Compatible with Lippert axles. The bolt pattern is 8 on 6-1/2″. Comes with the races and studs properly pressed in and ready for assembly. Oil bath hubs offer an easy lubricating system without disassembling your hub. Hi temp axle grease can be used on this application as well. The Miller Auto Technology hub will interchange with Lippert New Style 9,000 lb. and 10,000 lb. general duty axles manufactured after July 2009. Inner bearing, outer bearing, oil seal, oil cap, and lug nuts are sold separately.
Commonly used on Flatbed Trailers, Equipment Trailers, & Dual Tandem Trailers.
SPECIFICATIONS
- Axle Capacity- 9,000-10,000 lbs. General Duty (Manufactured After July 2009)
- Hub/Drum Capacity- 5,000 lbs.
- Bolt Pattern- 8 On 6-1/2″
- Hub Pilot- 4-3/4″
- Wheel Size- 16″, 17.5″
- Drum Dimensions
- Diameter- 12-1/4″
- Width- 3-3/8″
- Bearings (Sold Separately)
- Inner Bearing- 387A (ID- 2.250″)
- Outer Bearing- 25580 (ID- 1.750″)
- Races (Included)
- Inner Race- 382A
- Outer Race- 25520

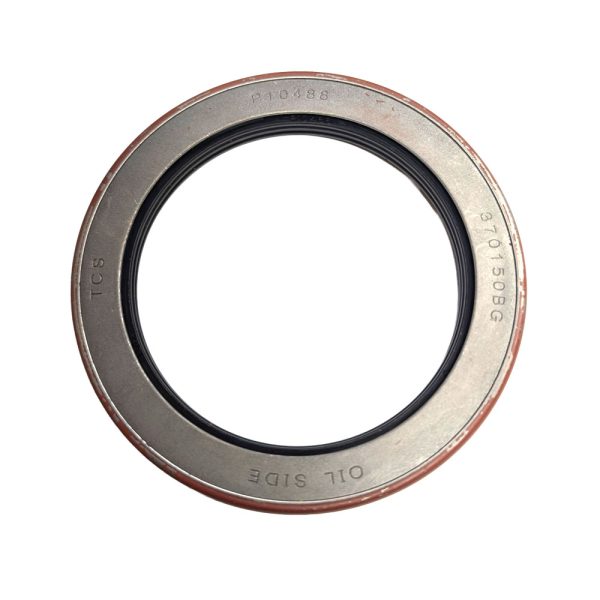

- Oil Seal (Sold Separately)
- 10-51 (ID- 2.875″ & OD- 3.880″)
- Oil Cap (Sold Separately)
- 21-36 Oil Cap Kit
- 5/8″ Wheel Studs
- MAT 99-86510-123
Product Information
This hub is to be used on Lippert Axles manufactured after July 2009 .This hub is designed to fit on a Lippert 9,000 lb. and 10,000 lb. General Duty trailer axle. Please verify your bearing numbers before placing your order. Increase the life of your trailer, by using Miller Auto Technology’s top of the line, durable, quality replacement parts.
$241.99
Payment Methods:
Shopping Local? Order Online & Pickup In-Store.
|
914 State Hwy 19 |
8114 North Fwy Houston TX 77037 (281) 448-4955 |
7203 S Loop East Houston TX 77087 (713) 644-1291 |
Frequently Bought Together
MAT Lippert Replacement Hub And Drum, 9000-10000 lb General Duty Axle 8 on 6-1/2″, After July 2009
In stock
Description
MAT Lippert Replacement Hub And Drum, 9000-10000 lb General Duty Axle 8 on 6-1/2″, After July 2009
This MAT trailer hub and drum is designed to mount on 9,000-10,000 lb general duty trailer axles. The drum drums gives a gripping surface for the brake shoes when you apply the brakes. They are compatible with both electric or hydraulic 3-3/8″ brake assemblies. Durable steel construction offers strong stopping power. Compatible with Lippert axles. The bolt pattern is 8 on 6-1/2″. Comes with the races and studs properly pressed in and ready for assembly. Oil bath hubs offer an easy lubricating system without disassembling your hub. Hi temp axle grease can be used on this application as well. The Miller Auto Technology hub will interchange with Lippert New Style 9,000 lb. and 10,000 lb. general duty axles manufactured after July 2009. Inner bearing, outer bearing, oil seal, oil cap, and lug nuts are sold separately.
Commonly used on Flatbed Trailers, Equipment Trailers, & Dual Tandem Trailers.
SPECIFICATIONS
- Axle Capacity- 9,000-10,000 lbs. General Duty (Manufactured After July 2009)
- Hub/Drum Capacity- 5,000 lbs.
- Bolt Pattern- 8 On 6-1/2″
- Hub Pilot- 4-3/4″
- Wheel Size- 16″, 17.5″
- Drum Dimensions
- Diameter- 12-1/4″
- Width- 3-3/8″
- Bearings (Sold Separately)
- Inner Bearing- 387A (ID- 2.250″)
- Outer Bearing- 25580 (ID- 1.750″)
- Races (Included)
- Inner Race- 382A
- Outer Race- 25520
- Oil Seal (Sold Separately)
- 10-51 (ID- 2.875″ & OD- 3.880″)
- Oil Cap (Sold Separately)
- 21-36 Oil Cap Kit
- 5/8″ Wheel Studs
- MAT 99-86510-123-L
Product Information
This hub is to be used on Lippert Axles manufactured after July 2009 .This hub is designed to fit on a Lippert 9,000 lb. and 10,000 lb. General Duty trailer axle. Please verify your bearing numbers before placing your order. Increase the life of your trailer, by using Miller Auto Technology’s top of the line, durable, quality replacement parts.
Specification
General
| Weight | 64 lbs |
|---|---|
| Dimensions | 14 × 14 × 10 in |
This product contains or emits chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
