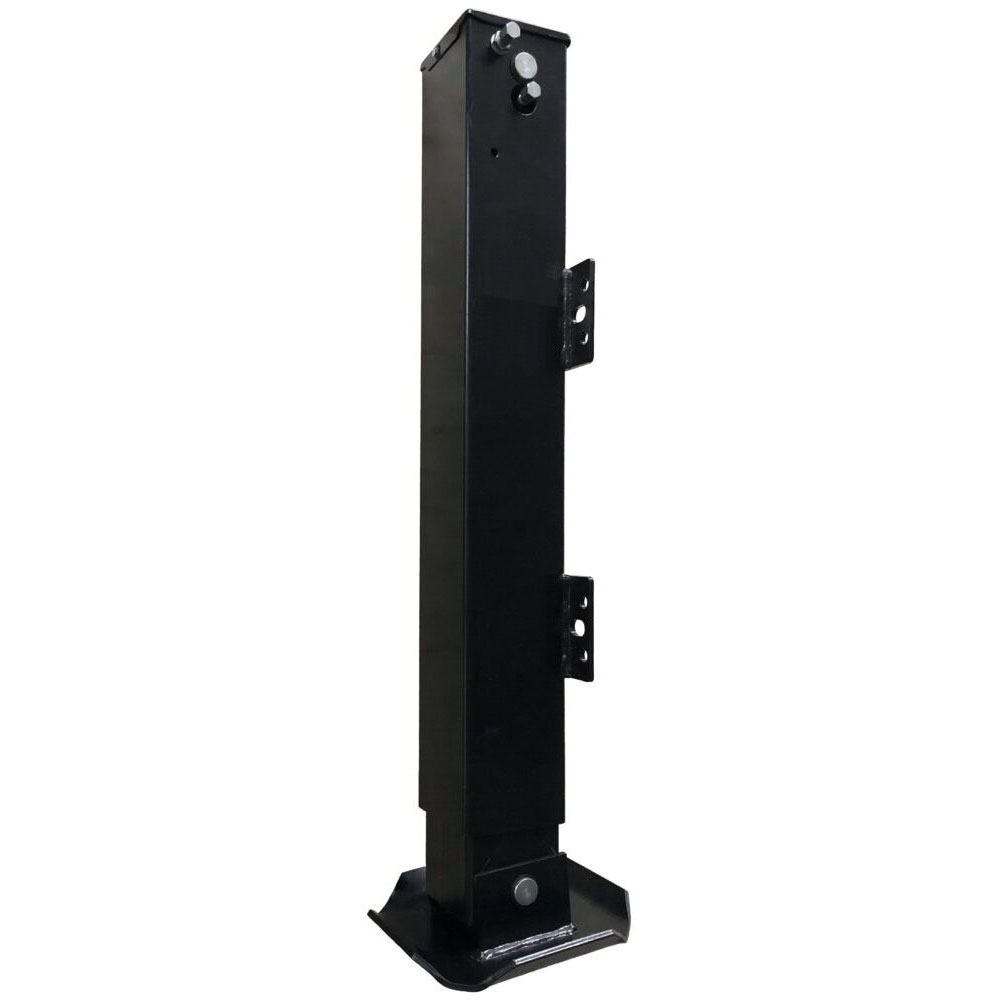

RAM 15K Hydraulic Square Tube Bolt On Jack

RAM 15K Hydraulic Square Tube Bolt On Jack

RAM 15K hydraulic trailer jack is ideal for use with commercial, construction, and dump trailers. With a 15,000 lb. support capacity and 12,000 lb. lift capacity, this jack can handle most any job. Integrated counter balance valve that eliminates drift/retraction when trailer is stationary and not in use. The hydraulic application allows for fast manual free operation. The large pivoting 10″x10″ foot pad works well on uneven surfaces. Direct weld application offers easy instillation. Hydraulic power unit and hydraulic lines are not included.

SPECIFICATIONS

• Hydraulic Application
• Support Capacity- 15,000 lb.
• Lift Capacity- 12,000 lb.
• Integrated Counter Balance Valve Eliminates Drift/Retraction
• Dimensions
  • Retracted Height- 34.8″
  • Extended Height- 59″
• Travel Distance- 24.2″
• Pivoting Large 10″x10″ Foot Pad
• Durable Exterior Grade Black Powder Coat Finish
• Works With Hydraulic Pump With Up To 3200 psi Extension, 1500 psi Retraction Pressure
• Direct Weld Application
• RAM HK-15000-LEG

Product Information

Trailer jacks are used to lift the trailer’s tongue so the tow vehicle can be hooked to the trailer. Know your trailer’s tongue weight before selecting your jack. Tongue weight is measured by the amount of weight that is applied to the rear of the tow vehicle. Your tongue weight is usually 10-15% of the trailer’s total weight. (Trailer + Pay Load). It is okay to have a jack that is rated for more than what you actually need. Increase the life of your trailer, by using RAM’s top of the line, durable, quality replacement trailer parts.
