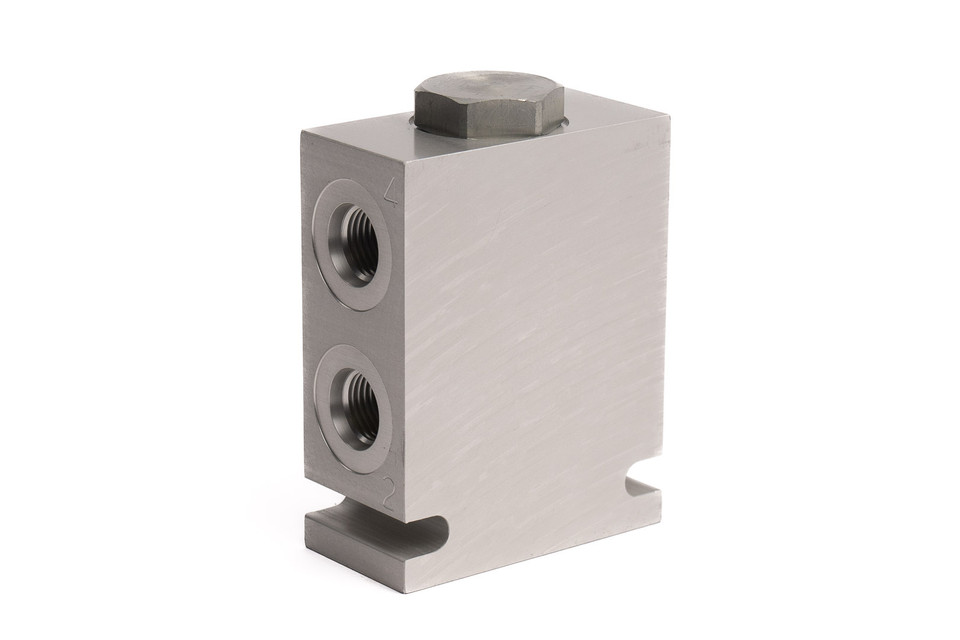

Ram Hydraulic Flow Divider

Ram Hydraulic Flow Divider, HFD-612

The Ram Hydraulic Flow Divider is a specialized hydraulic component used to split a single fluid stream from a power source equally into two separate lines, allowing for the synchronized operation of two hydraulic cylinders or jacks. Use when operating two hydraulic jacks with one HPU

Specifications:

• It divides the fluid flow equally, ensuring that dual-actuator setups—such as those on dump trailers, heavy lift equipment, or twin-jack systems—raise and lower at the exact same rate, even if the weight is unevenly distributed.
• Typically receives flow from a single Hydraulic Power Unit (HPU) port and splits it exactly 50/50.
• All ports are SAE #6 O-Ring female, requires adapters to couple with 9/16-18 SAE #6 JIC 37 degree flare hydraulic hose
• RAM- HFD-612 Flow Divider
